Through Hole Soldering HASL Lead Free Turn Key PCB Assembly
Detailed for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technolog
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity
| Product Parameter |
| Item(pcb) | Capability (pcb) |
| Base Material | FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon |
| Layers | 1-22 |
| Finised inner/outer copper thickness | 1-6OZ |
| Finished board thickness | 0.2-7.0mm |
| Min hole size | Mechanical hole: 0.15mm
Laser hole: 0.1mm |
| Controlled Impedance | +/-5% |
| Plugging vias capability | 0.2-0.8mm |
| Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
| Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |
FASTPCBA is the best pcb manufacturing and pcb assembly factory globally, with ISO9001, ISO13485, 14000, and IATF16949 certificates simultaneously, can provide better pcba service for customers from automotive pcba, medical pcba, industrial pcba,communication pcba,military pcba, aerospace pcba, Iot pcba etc.
FASTPCBA keeps pace with the times, has imported advanced YAMAHA, MADATA, selective wave soldering, 3D AOI, X-RAY etc equiments, we can provide custom pcb manufacturing, precise pcb assembly, accurate pcb printing, original package componets agent service, save your cost and time at the same time.
FASTPCBA survival over 20 years, as our goal is always provide best quality pcba solution for customers from domestic and abroad like UK, France, Gemany, Russia, America, Brazil, Japan etc. FASTPCBA can turn your pcb design to pcba or pcb assp, welcome to inquiry and visit us in shenzhen china.
Application Fields
We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, aerospace and Bluetooth etc.
Product Tags:
|
|

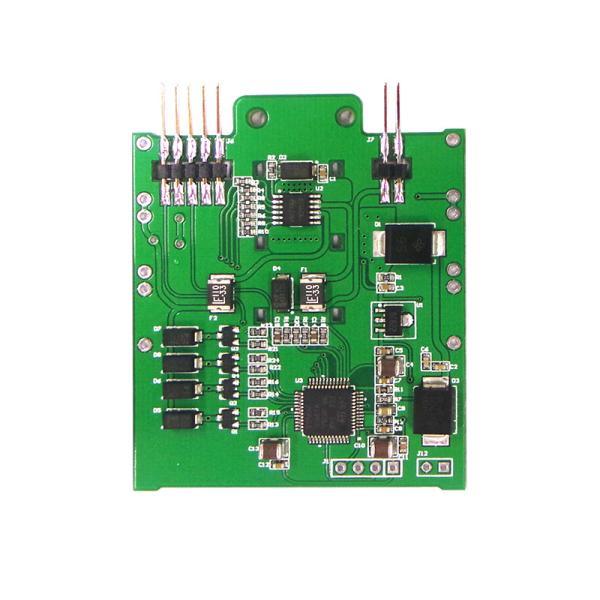

Through Hole Soldering HASL Lead Free Turn Key PCB Assembly Images
|
