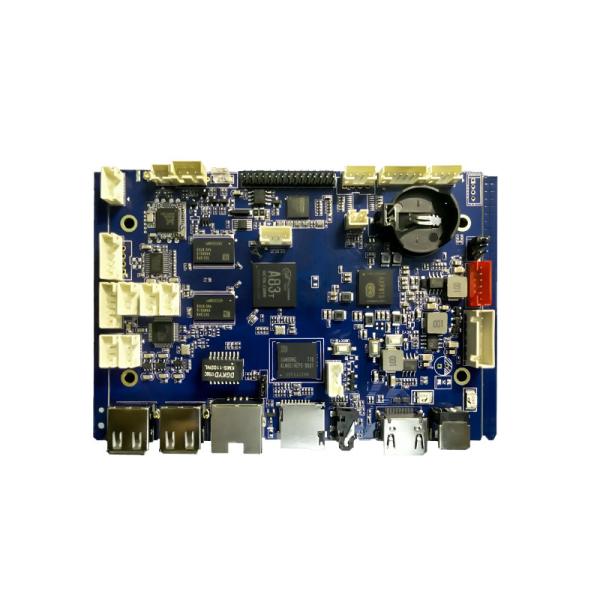

Automobile Square Circle Irregular Standard CEM-1 Medical PCBA

Name: Automobile Square Circle Irregular Standard CEM1 Medical PCBA
Brand: FASTPCBA
Price: 0.5 USD

China Automobile Square Circle Irregular Standard CEM-1 Medical PCBA wholesale

Brand Name : FASTPCBA

Model Number : PCBA Manufacturers

Certification : IATF16949, ISO13485, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : 0.5-30USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150000 Pieces per Month

Delivery Time : 1-10 work days

Packaging Details : PCB: Vacuum Packing/ PCBA: ESD Packing

Name : PCBA Manufacturers

Laminate materials : FR4, High TG FR4, High Frequency, Alum, FPC

Number of layers : 1-48

Silkscreen : Min size 0.006″(0.15mm)

PCB outline : Square,circle,irregular(with jigs)

Sub-assembly : Plastic,metal,screen

Contact Now

Custom Medical PCBA Manufacturer / Industrial Control PCB / Medical Pcb Factory In Shenzhen

PCB product Capacity

PCB Manufacture Capacity
Item	Specification
Material	FR-4, FR1,FR2; CEM-1, CEM-3,Rogers, Teflon,Arlon,Aluminum Base, Copper Base,Ceramic, Crockery, etc.
Remarks	High Tg CCL is Available(Tg>=170℃)
Finish Board Thickness	0.2 mm-6.00mm(8mil-126mil)
Surface Finish	Gold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um)
Shape	Routing,Punch,V-cut,Chamfer
Surface Treatment	Solder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA)
	Silkscreen(black, yellow, white)
	Peel able-mask(red, blue, thickness>=300um)
Minimum Core	0.075mm(3mil)
Copper Thickness	1/2 oz min; 12oz max
Min Trace Width & Line Spacing	0.075mm/0.075mm(3mil/3mil)
Min Hole Diameter for CNC Drilling	0.1mm(4mil)
Min Hole Diameter for Punching	0.6mm(35mil)
Biggest panel size	610mm * 508mm
Hole Position	+/-0.075mm(3mil) CNC Drilling
Conductor Width(W)	+/-0.05mm(2mil) or +/-20% of original
Hole Diameter(H)	PTHL:+/-0.075mm(3mil)
Hole Diameter(H)	Non PTHL:+/-0.05mm(2mil)
Outline Tolerance	+/-0.1mm(4mil) CNC Routing
Warp & Twist	0.70%
Insulation Resistance	10Kohm-20Mohm
Conductivity	<50ohm
Test Voltage	10-300V
Panel Size	110 x 100mm(min)
Panel Size	660 x 600mm(max)
Layer-layer misregistration	4 layers:0.15mm(6mil)max
Layer-layer misregistration	6 layers:0.25mm(10mil)max
Min spacing between hole edge to circuitry pattern of an inner layer	0.25mm(10mil)
Min spacing between board outline to circuitry pattern of an inner layer	0.25mm(10mil)
Board thickness tolerance	4 layers:+/-0.13mm(5mil)

Automobile Square Circle Irregular Standard CEM-1 Medical PCBA

We produces pcba for our customers from various industries, from smart home, automotive, industry to communication, medical, communication, even include military and aerospace pcba.

Automobile Square Circle Irregular Standard CEM-1 Medical PCBA

Our Services
We can provide one-stop service:
1. PCB circuit boards+Assembly
2. E-test.
3. Electronic components purchasing.
4. PCB assembly: available on SMT, BGA, DIP.
5. PCBA function test.
6. Enclosure assembly.

Automobile Square Circle Irregular Standard CEM-1 Medical PCBA

Product Tags:

CEM-1 Medical PCBA

Automobile Medical PCBA
